胡志明市“神奇丛林屋”！300㎡挤下公寓商铺，阳台还能变花园

发布于：2025-11-18 11:49:37

首页/技术分享/建筑赏析

357

网友投稿

胡志明市“神奇丛林屋”！300㎡挤下公寓商铺，阳台还能变花园第1张图片

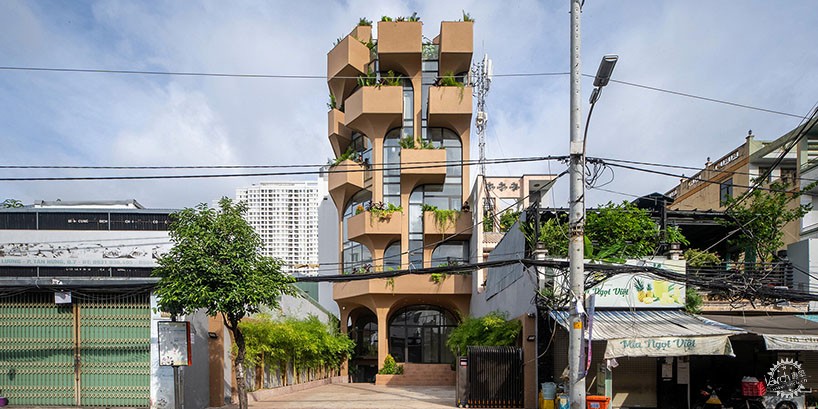

Room+建筑事务所在越南设计一个综合体，该综合体外观采用弧形元素，整体犹如垂直花园
mixed-use unit's curved and vaulted volumes by room+ shape vertical garden in vietnam

由专筑网韩慧慧，小R编译

ROOM+建筑事务所承接了一个综合体项目，名为The Jungle。该项目的建设为越南胡志明市的城市建设提供了一种新思路。越南各城市面临着土地紧张的问题，综合体的出现恰好能解决这一问题。该项目集居住、商业和公共活动功能于一体。项目位于市中心南向街角附近，场地大小为300㎡，为满足未来城市规划需求，场地内建设需退道路12m，还需在街角处预留道路扩建面积，虽然可建设面积小，但该综合体总建筑面积仍超800㎡。

场地内设计有地下室150㎡、商业面积300㎡左右、9套30~45㎡之间的一居室公寓和屋顶咖啡厅，咖啡厅旁还设计有共享办公区供人们使用。建筑核心筒集中设计在后半部，能够明确划分各功能区域，进而实现无柱空间。这种设计方式能够增加空间布局的灵活性，为未来功能调整预留解决方案，如公寓布局改变、合并等问题。建筑有特色的设计点在于立面与阳台，阳台错位分布在立面上，且尺寸与形状各有不同，可作为被动遮阳构件，也可当做休闲空间和小花园，种上攀爬植物沿建筑表面生长。还可根据居民居住需求种植植被，加强建筑、环境与居民之间的互动融合。

The Jungle by ROOM+ Design & Build represents a singular approach to boutique mixed-use architecture in Ho Chi Minh City, Vietnam. In response to the increasing density and spatial constraints of Vietnam’s urban centers, the project presents an alternative mixed-use model that integrates residential, commercial, and communal functions within a compact site. Located on a 300-square-meter south-facing corner plot near the city center, the project accommodates over 800 sqm of program, despite urban planning restrictions including a 12-meter setback and a chamfered corner reserved for future road expansion.
The program includes a 150-square-meter basement, approximately 300 sqm of retail and commercial space, nine one-bedroom apartments ranging from 30 to 45 sqm, and a rooftop café with co-working areas. A vertical core positioned at the rear, combined with clearly defined service zones, allows for column-free interior layouts. This arrangement optimizes both flexibility and usable floor area, supporting potential future adaptations such as apartment combinations. A defining feature of the project is its treatment of the facade and balcony system. Balconies of varying shapes and sizes are distributed across the elevations, enabling passive shading and informal outdoor use. These spaces also function as planters, encouraging vegetation to grow across the building envelope. Informed by Vietnamese urban living habits, this integration of plant life with residential use reinforces the building’s engagement with the local environment.

胡志明市“神奇丛林屋”！300㎡挤下公寓商铺，阳台还能变花园第2张图片

all images by Sonmeo Nguyen Art Studio

设计师注重建筑表面细节设计，使建筑与周边环境相融合，建筑内外均采用当地石材和黏土饰面建造。立面窗户顶部为弧形，柱子与阳台之间也采用弧形连接，且各个转折面和连接处均应用柔和线条，柔化建筑轮廓线，也与周围植被走向相呼应。设计师为每间公寓配备有1~2个阳台，使得室内外空间能够互通，并在视觉上具有连贯性。建筑屋顶上设计有半开放的咖啡厅，并与办公空间连通起来。屋顶柱子模拟自然树干的形状，支撑着半透明的屋盖，能够营造独特浪漫的感觉。室外设计有双跑楼梯，可直达屋顶花园，不仅可为居民提供室外公共活动区，还能够提供观看城市景观的最佳视野。在如今用地紧张的情况下尽可能为居民提供室外空间活动，这也是本项目的设计核心。

ROOM +建筑事务所在项目的每个环节均设计有环保措施，如建筑大厅的设计注重自然通风与采光效果，屋顶柱子自带收集雨水的功能，收集的雨水用于灌溉和消防。项目还设计有太阳能热水器和自动灌溉系统，采用低辐射玻璃、LED照明。建筑材料主要选用本地资源，如花岗岩、陶瓷、水泥砖和木材等，还采用各种可回收材料，如铝材、石膏、纤维板等。建筑内部不是单一空间，而是集各种功能于一体，在城市发展中适应性较强。这种类型的建筑更加适合在高密度城市中生存，将空间利用率提到最高，并尽可能融合一些生态措施，使得建筑与城市、环境有机融合。

Architectural detailing further emphasizes this naturalistic approach. The exterior incorporates curved glass, vaulted columns, and a material palette of clay finishes and local stone, while the interiors extend these design strategies with soft contours and organic textures. Each apartment opens onto one or two balconies, maintaining visual and spatial continuity between interior space and the external environment. At the top of the structure, a semi-sheltered rooftop café and co-working space is framed by slender tree-like columns beneath a translucent roof. A rooftop garden, accessible via an external zigzag stair, provides additional communal space and elevated city views, contributing to the project’s broader goal of spatial generosity within a tight footprint.
ROOM+ Design & Build Studio embeds environmental strategies throughout. Openings are designed to enhance cross-ventilation and daylight access. Rainwater is harvested via the column structure and reused for irrigation and fire safety. The project also integrates solar water heaters, Low-E glass, LED lighting, and automated watering systems. Material selection combines local resources such as granite, ceramic, cement tile, and wood with recyclable elements like aluminum, gypsum, and fiberboard. Rather than a single-use solution, The Jungle operates as a layered and adaptable urban typology. It reconsiders how compact mixed-use developments can accommodate ecological responsiveness, spatial efficiency, and public engagement in dense city environments.

胡志明市“神奇丛林屋”！300㎡挤下公寓商铺，阳台还能变花园第3张图片

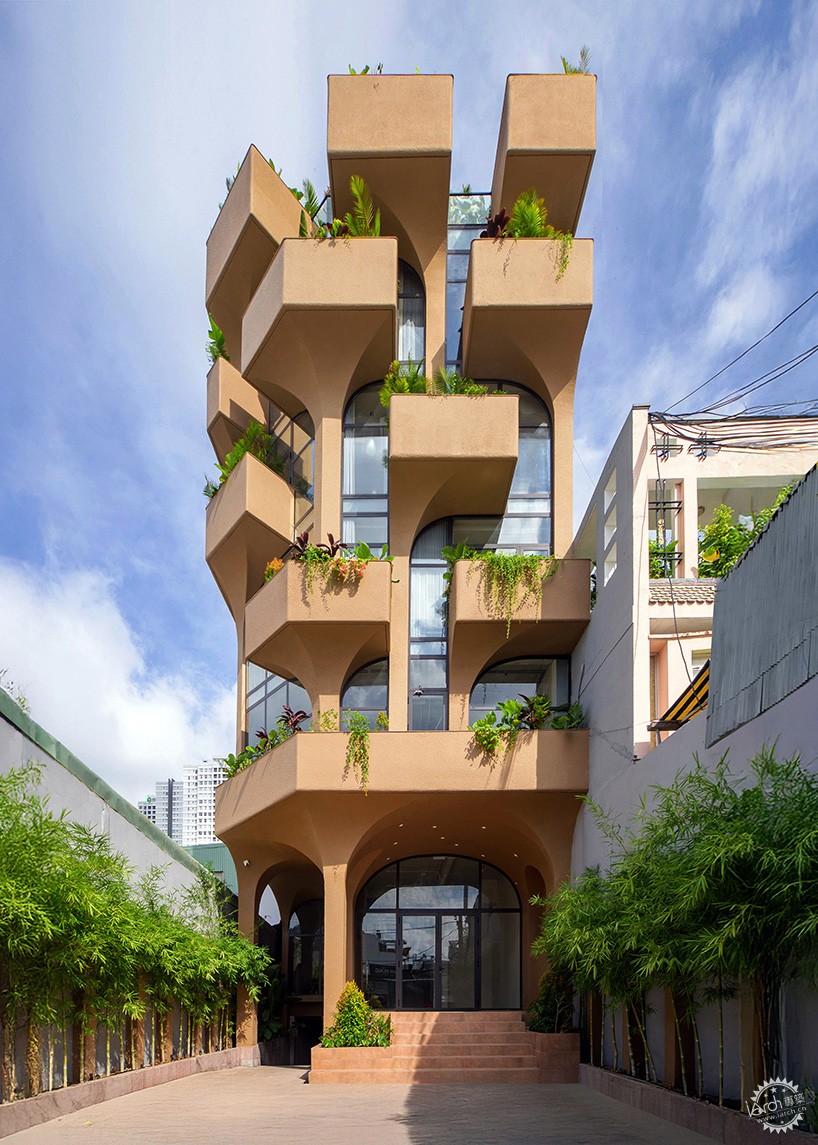

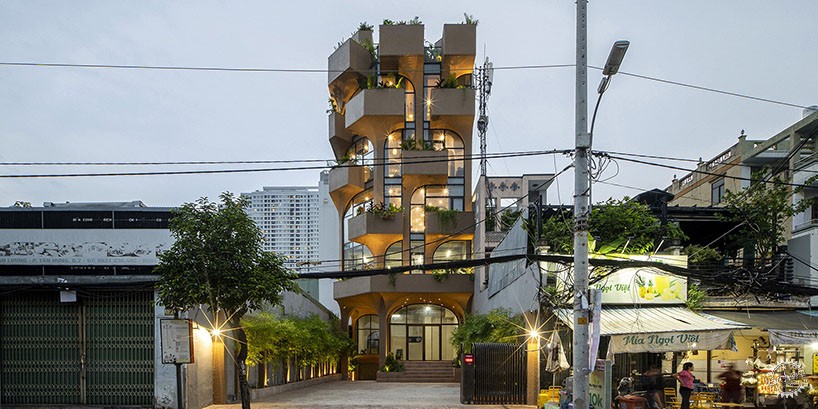

▲ 形状与尺度各异的阳台为建筑立面注入了新的活力
balconies of varied shapes and depths animate the building’s facade

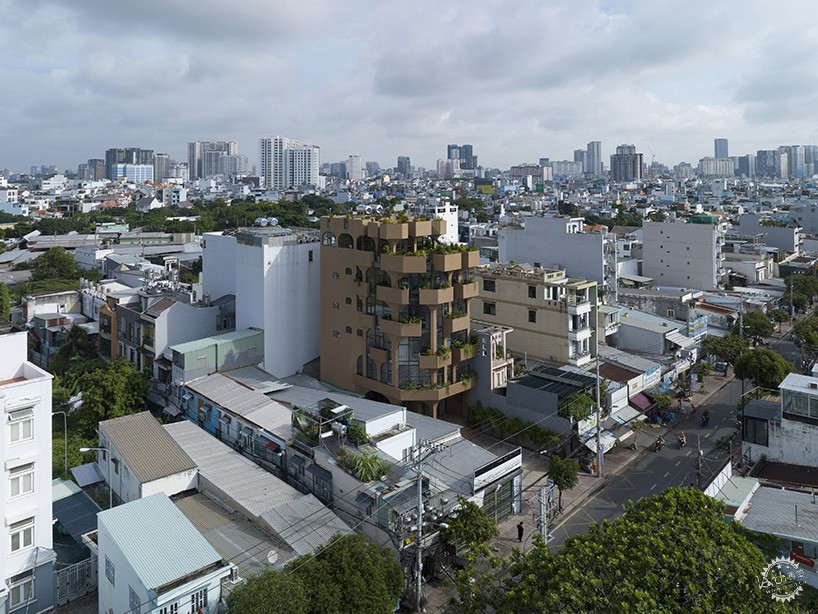

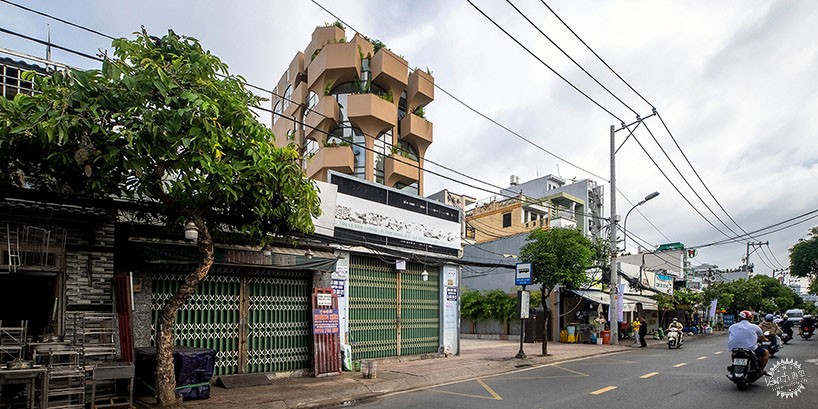

▲ 项目场地位于胡志明市的街角地段，场地面积仅300㎡
the Jungle occupies a compact 300-sqm corner site in Ho Chi Minh City

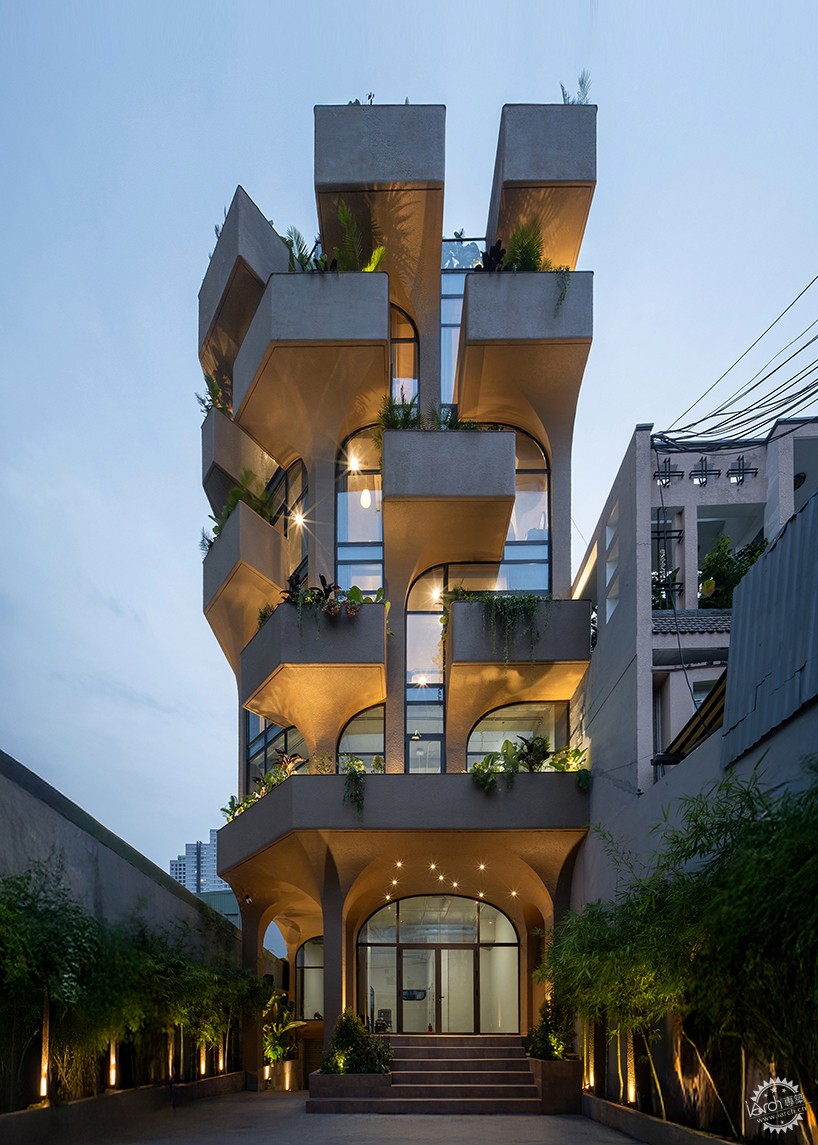

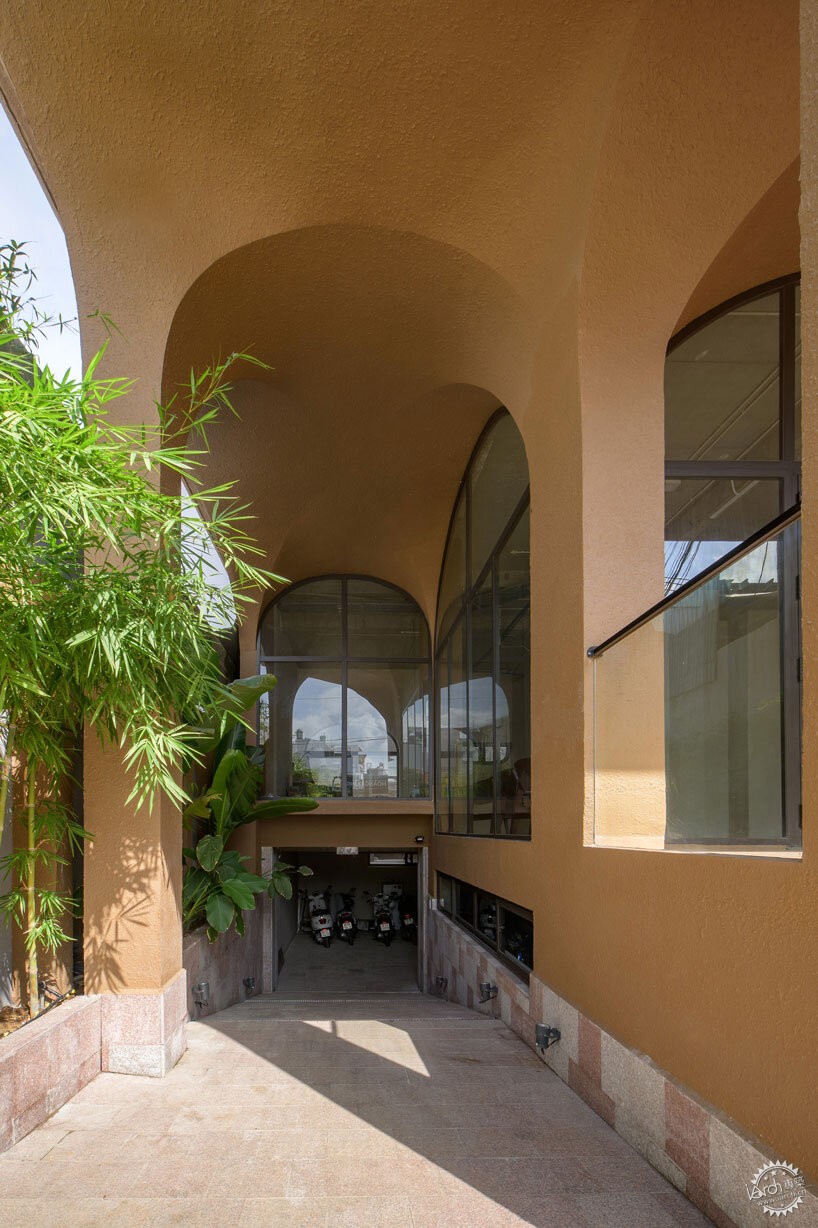

▲ 建筑立面窗户的顶部为弧形，立柱与阳台的连接处也为拱形，使得建筑整体呈现自然有机形态
curved glass and vaulted columns define the building’s organic form

▲ 阳台上还可种植植被，为建筑整体增添了绿意
the balconies double as planters, introducing vegetation along the envelope

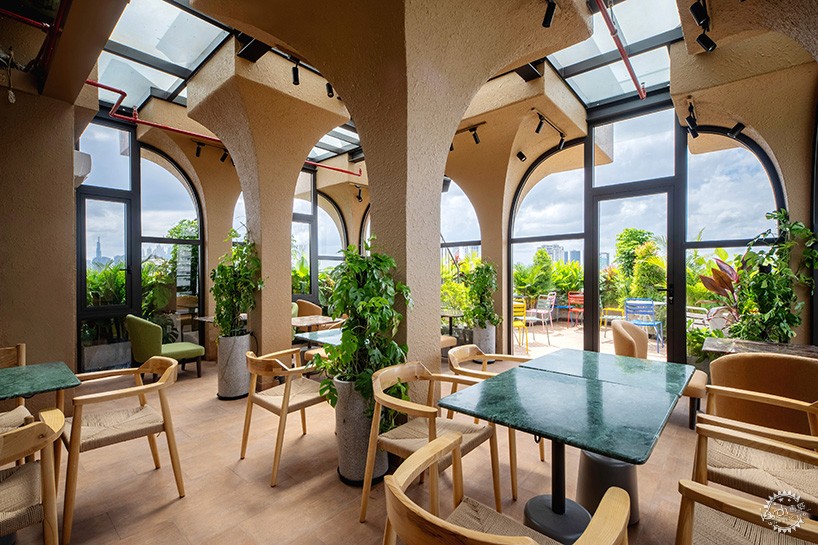

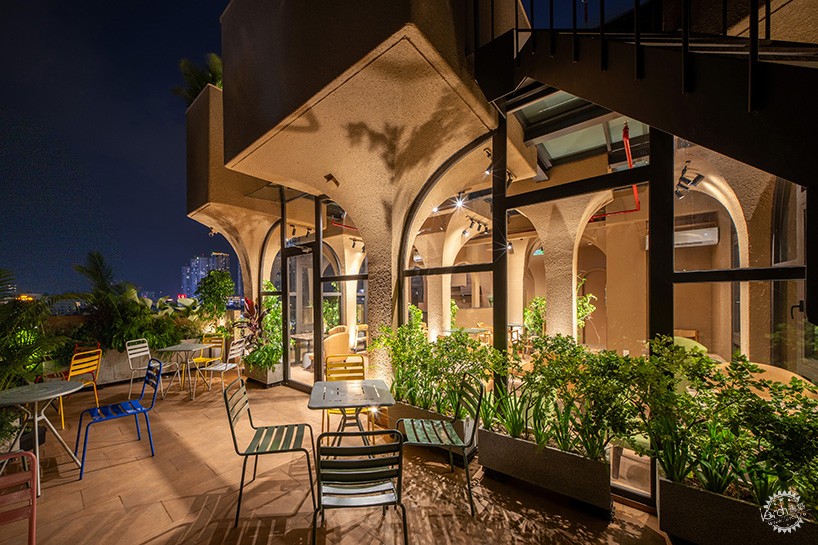

▲ 屋顶咖啡厅与办公空间共同组成共享活动空间，为人们提供最佳观景视野
a rooftop café and co-working area offers shared space with panoramic views

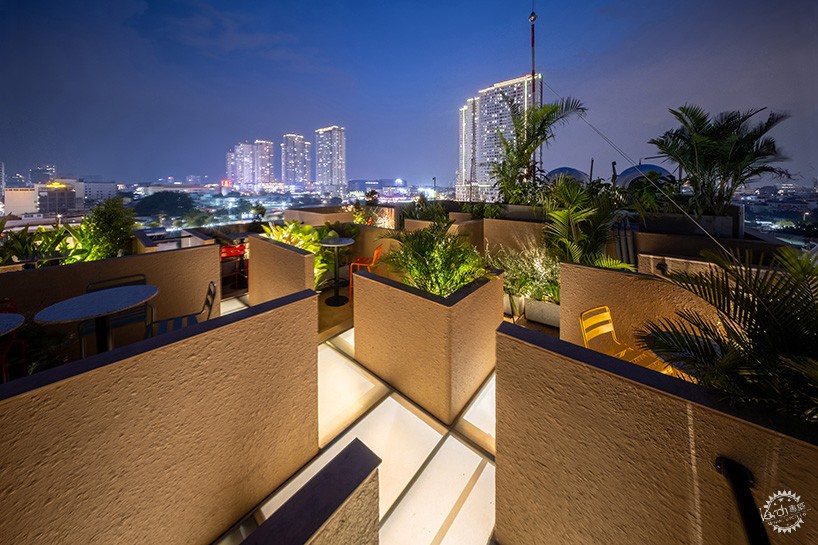

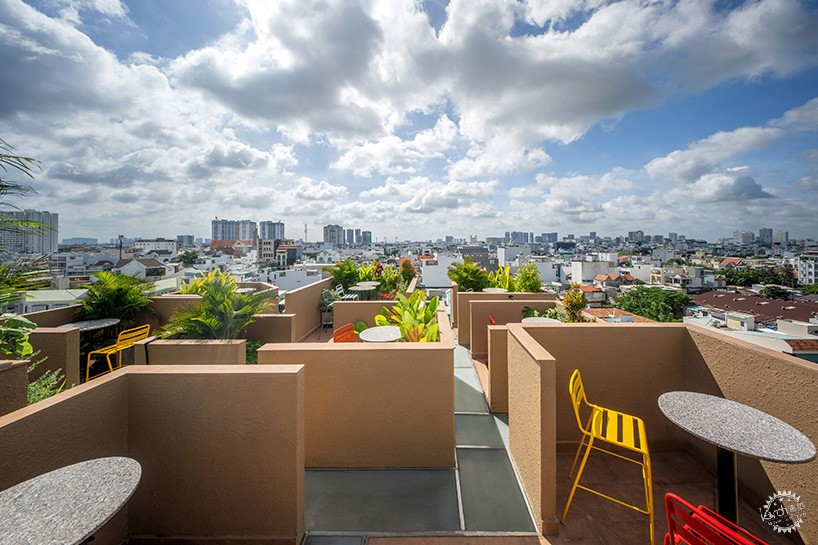

▲ 屋顶花园可成为人们的室外休闲活动场所，在高密度城市中非常难得
the rooftop garden functions as a rare urban green refuge

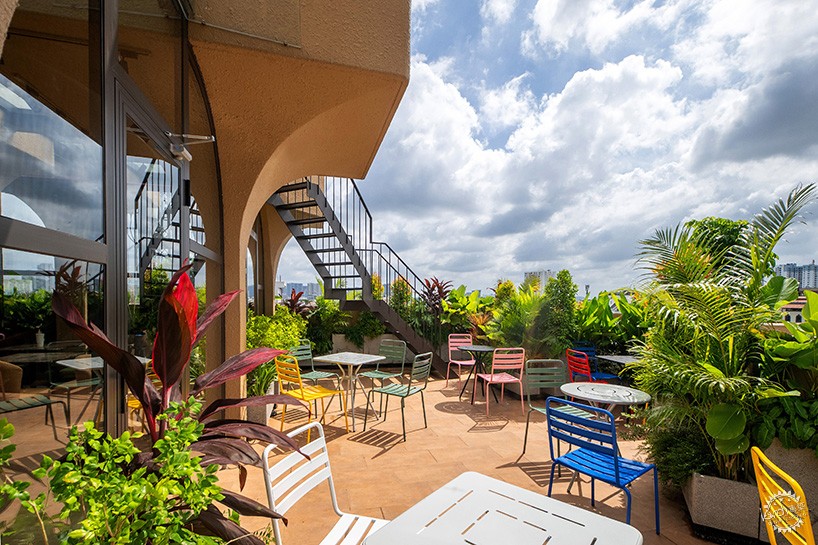

▲ 室外双跑楼梯可直达屋顶花园和咖啡厅
a zigzag stair connects the rooftop café to the planted rooftop garden

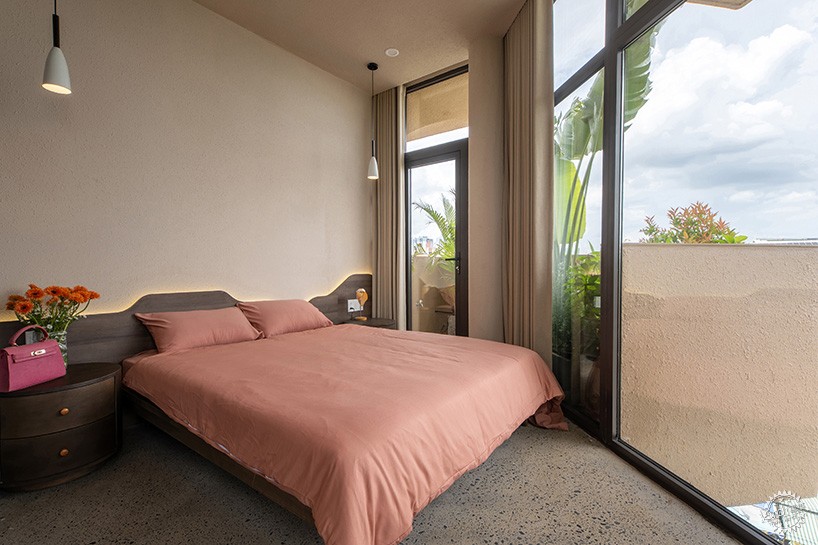

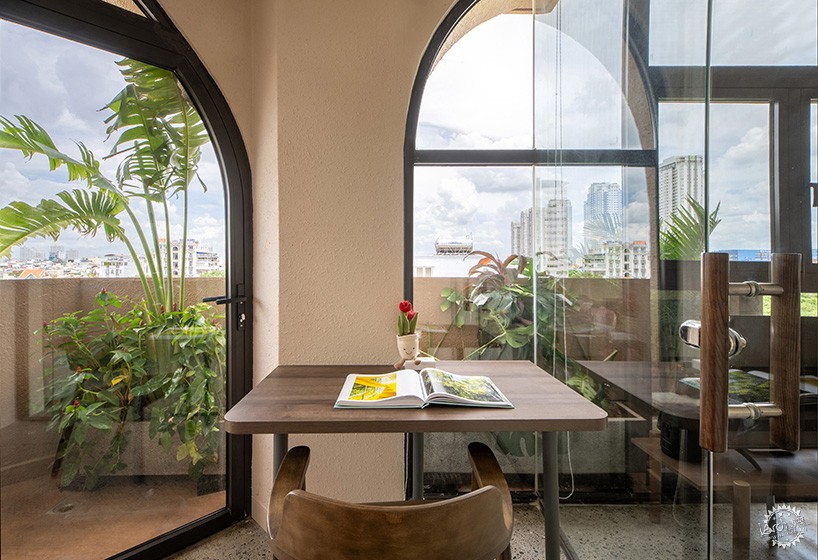

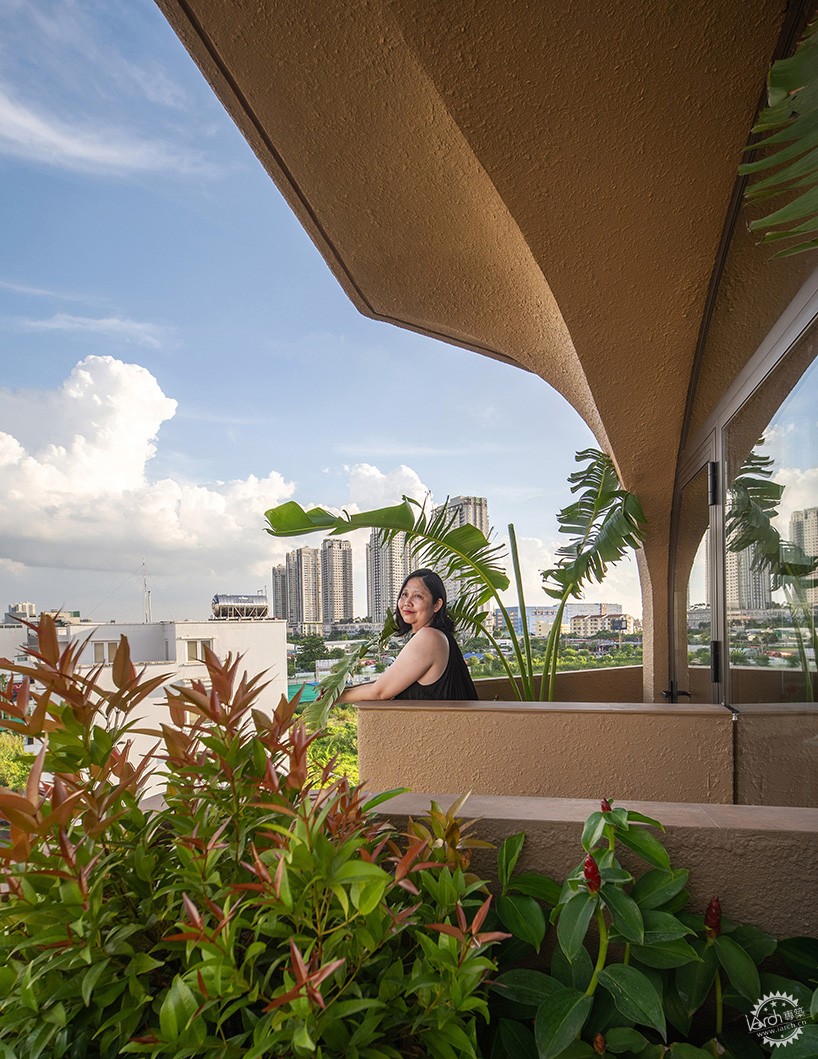

▲ 每间公寓均配备有室外阳台，可将室内活动空间延伸至室外
each apartment opens onto private balconies that extend living space outdoors

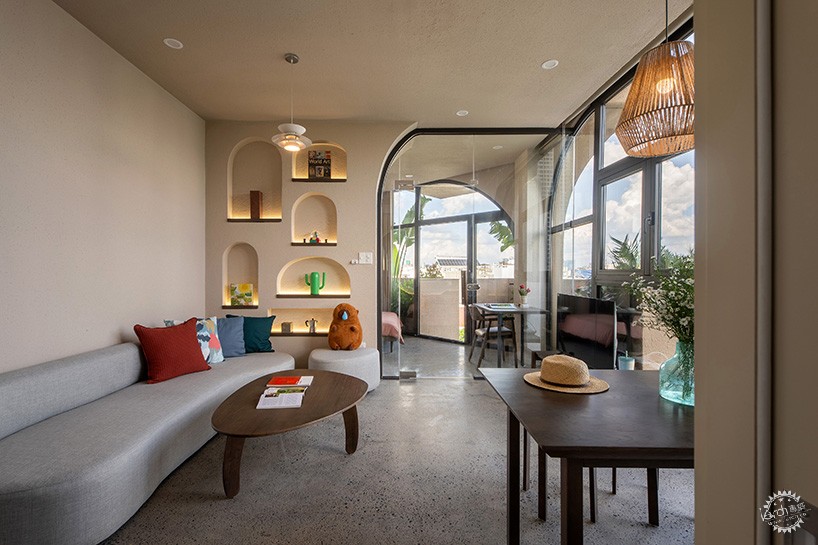

▲ 建筑内外均采用弧形设计，柔化建筑的冰冷感，体现自然主义风格
soft interior curves mirror the building’s naturalistic exterior expression

▲ 建筑采用本地石材与黏土，打造沉稳的材质基调
local clay finishes and stone reinforce a grounded material palette

▲ 顶层半透明屋盖由树形立柱支撑
tree-like columns support a translucent roof canopy at the top level

▲ 建筑内部功能多元化，层次丰富，是本次小型项目的设计核心
the project rethinks small-scale development through layered spatial programming

▲ 为提高建筑能效，设计师设计有太阳能热水器与LED照明系统
solar heaters and LED lighting contribute to the building’s efficiency

▲ ROOM + 建筑事务所设计的The Jungle综合体非常适用于高密度城市，因其注重功能多样性与城市适应性
The Jungle by ROOM+ prioritizes adaptability and multi-functionality within a dense city block

项目信息：
项目名称：The Jungle
建筑设计：ROOM+建筑事务所
首席设计师：Vinh Phuc Ta
设计团队：Vinh Phuc Ta, Anh Tuan Pham, Hoang Nam Nguyen, Minh Hieu Huynh, Huynh Nhu Bui, Tan Trung Ta, Van Tam Trinh, Van Kieu Pham, Ngoc Phi Duong
项目位置：越南胡志明市
建筑面积：1350㎡
摄影：Sonmeo Nguyen艺术工作室

project info:
name: The Jungle
architects: ROOM+ Design & Build | @roomplus.dnb
lead architect: Vinh Phuc Ta
design team: Vinh Phuc Ta, Anh Tuan Pham, Hoang Nam Nguyen, Minh Hieu Huynh, Huynh Nhu Bui, Tan Trung Ta, Van Tam Trinh, Van Kieu Pham, Ngoc Phi Duong
location: Ho Chi Minh City, Vietnam
area: 1,350 sqm
photographer: Sonmeo Nguyen Art Studio | @sonmeonguyenartstudio
